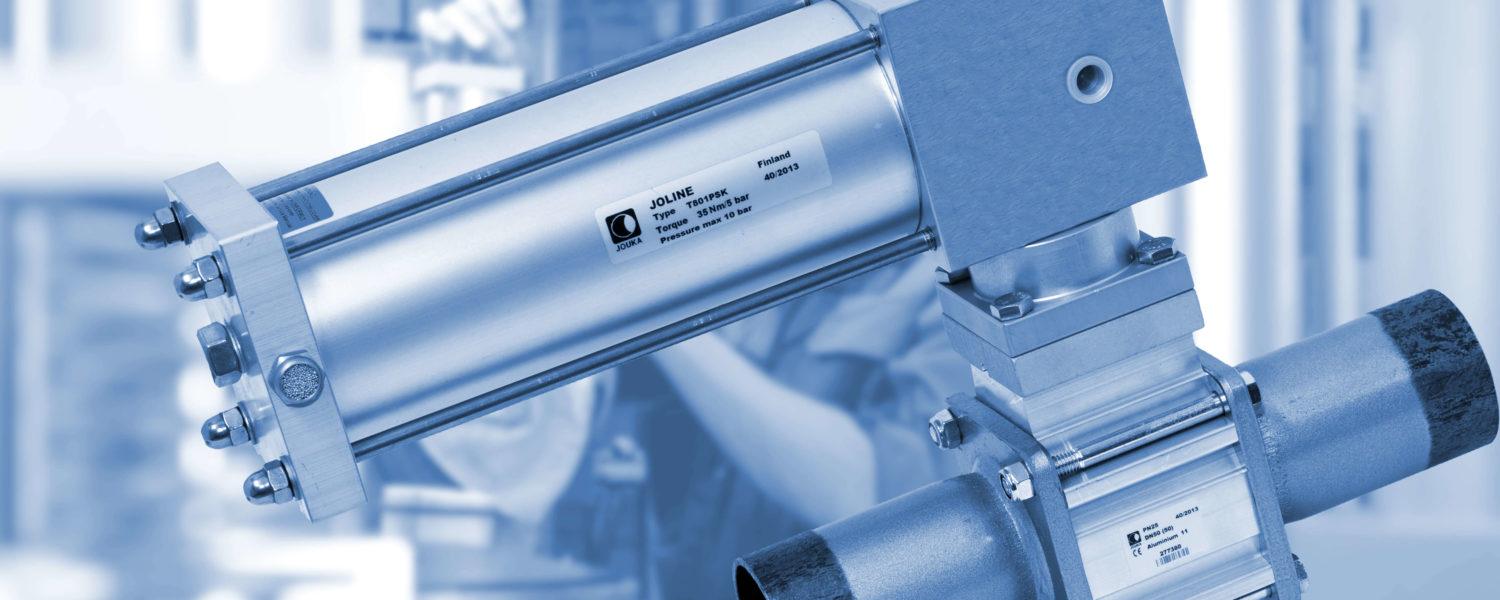

Jouka Joline actuator range includes single-acting spring-return and double-acting pneumatic actuators. The actuator is installed at one end, mounted on top of the valve, which allows installation in tight spaces such as directly against a tank wall.

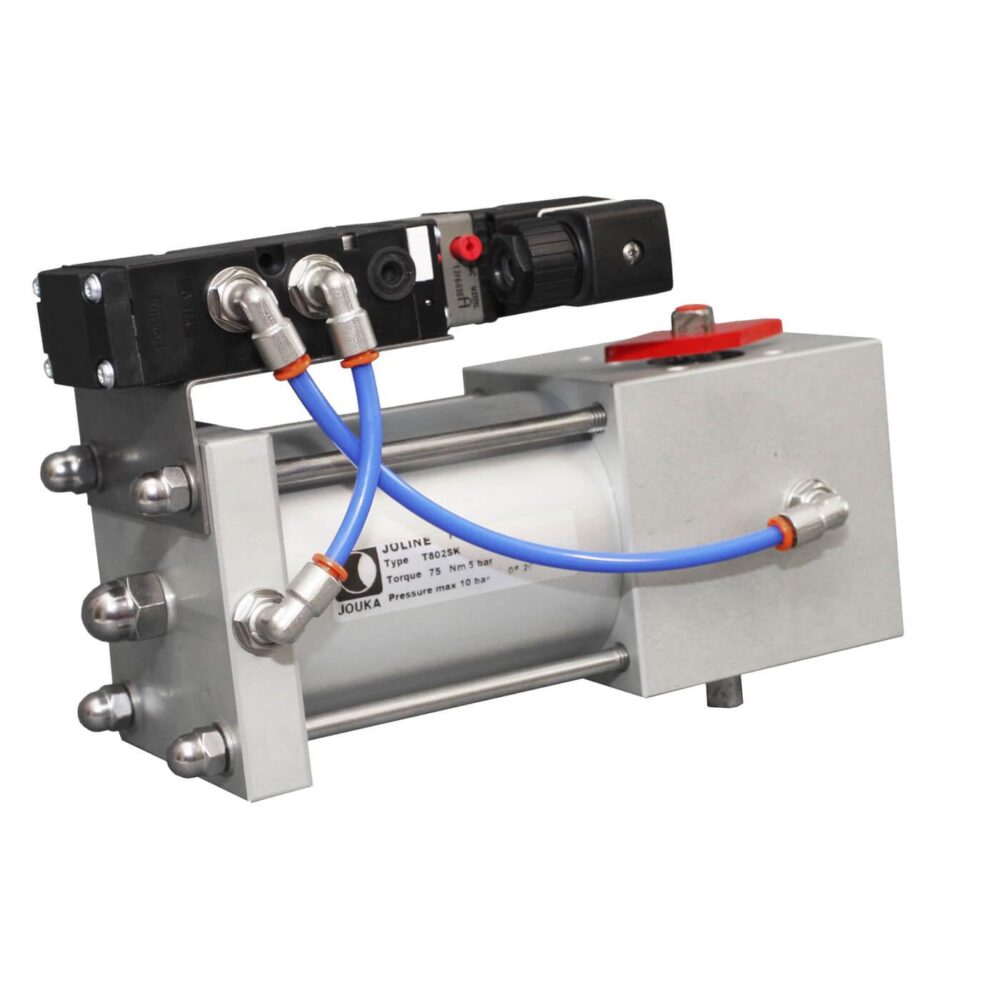

The Jouka Joline actuator is designed and manufactured at Jouka’s factory in Ylöjärvi. The actuator uses a linkage mechanism to convert linear motion into rotational motion. It is available as both double-acting and single-acting with spring return. The actuator has few wearing parts, and the large bearing surface of the joints increases its lifespan. The movement is precise and backlash-free. A solenoid valve and a limit switch can be connected to the actuator according to customer requirements. Years of operational experience, for example, from mobile equipment, prove that the Jouka Joline actuator is a reliable choice even in challenging and harsh conditions.
The actuator can be used to achieve 90° movement in:
- Valves
- Various hatches
- Smoke dampers
Joline actuator models:
- Joline T50 (for DN 10-25 valves)
- Joline T63 (for DN 32-50 valves)
- Joline T80 (for DN 65-80 valves)
- Joline T100 (for DN 100 valves)
Control Devices
With JOUKA control devices, you can follow and control the pressure and the flow of the fluid running through the valve. The valve can be controlled in the following ways:
- pneumatically,
- analogously or
- digitally
Contact us
Our experts will provide more information about our products and their customization options. We are dedicated to offering solutions that perfectly meet our customers’ needs. Jouka ball valves are a reliable choice – and we genuinely want to ensure that together we find the best solution for our customers’ applications.
